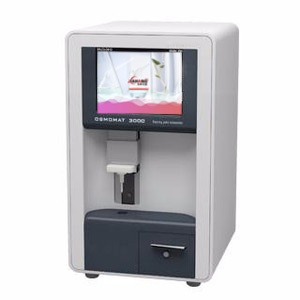

Freezing Point Osmolarity Equipment

Product Category:


Jiahang® JH-ST3000 Freezing Point Osmolarity Equipment is an osmolarity tester designed based on the principle of freezing point drop. It consists of a refrigeration system, a thermal probe for measuring current or potential difference, and an oscillator (or metal probe).
  • Products Detail
    • Commodity name: Freezing Point Osmolarity Equipment

    Jiahang® JH-ST3000 Freezing Point Osmolarity Equipment is an osmolarity tester designed based on the principle of freezing point drop. It consists of a refrigeration system, a thermal probe for measuring current or potential difference, and an oscillator (or metal probe).

    Freezing Point Osmolarity Equipment



    Jiahang® JH-ST3000 Osmometer apparatus is an osmolarity tester designed based on the principle of freezing point drop. Freezing Point Osmolarity Equipment consists of a refrigeration system, a thermal probe for measuring current or potential difference, and an oscillator (or metal probe). When measuring, immerse the measuring probe in the center of the test solution and lower it into the cooling tank of the instrument. Start the refrigeration system, when the temperature of the test solution drops below the freezing point, the instrument uses an oscillator (or metal probe) to induce the solution to freeze, and automatically records the temperature at which the freezing point drops.

    JH-ST3000



    Freezing Point Osmolarity Equipment Features:



    1. Adopt high-precision sensors to ensure test accuracy;

    2. Double refrigeration system to ensure efficient and fast testing;

    3. Two-point and multi-point linear calibration can be performed to ensure the linearity of the instrument;

    4. Simultaneous measurement of osmotic pressure molar concentration value, freezing point value and molar concentration ratio;

    5. Multi-level authority management, authority can be freely configured;

    6. Compliant with 21CFR Part11 audit trail, 2020 edition, "US Pharmacopoeia" and other standards;

    7. Comply with GMP and cFDA certification.





    Jiahang® Freezing Point Osmolarity Equipment Application areas:



    Clinical Laboratory, General Internal Medicine, Urology, Nephrology, Pediatrics, Gynecology, Hemofiltration, Hemodialysis, Pharmacy, Intensive Care Unit (ICU), IVF, Veterinary Medicine, Forensic Medicine, Botany, Physiology, Scientific Research and Industry , biotechnology, electron microscopy applications, pharmaceutical industry, etc.





    Jiahang® Freezing Point Osmolarity Equipment Technical parameter:



    Measuring range:

    0-3000mosmol/kg

    Sample volume:

    50µl (50µl-100µl)

    Test time:

    <100S

    Pre-cooling time:

    ≤3 minutes

    Accuracy:

    ±2mmol/kg (≤200mosmol/kg)

    ±1%(>200mosmol/kg)

    Relative standard deviation (RSD):

    ≤±1% (300 mosmol/kg)

    Resolution:

    1mosmol/kg

    Ambient temperature:

    10-30ºC

    Ambient temperature:

    10-30ºC

    Power supply:

    AC 220V 50HZ 150W

    Dimensions:



     220mm*270mm*340mm

    Weight:

    15KG
